Freeze Dryer (Lyophilizer) – All Models

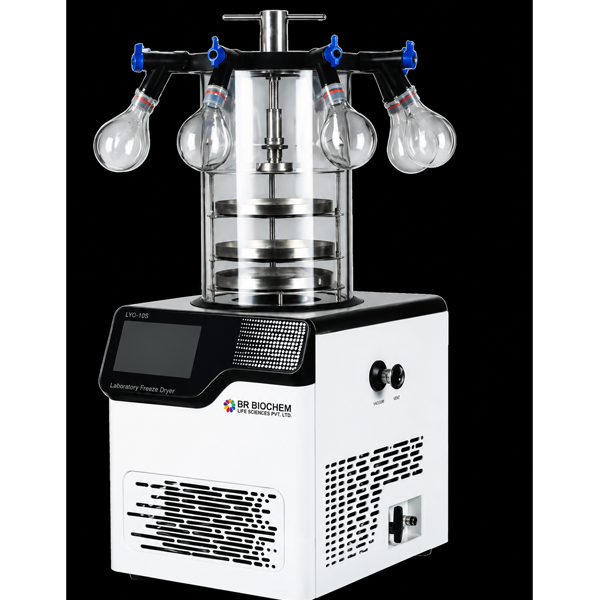

The BR Biochem Benchtop Freeze Dryer (Lyophilizer) removes water from frozen materials by turning ice directly into vapor (sublimation) without becoming liquid. It uses heat for vaporization, vacuum for removal, and a cold collector to condense vapor into ice. Available in -60°C (for water solvents) and -80°C (for low freezing point substances) models.

Categories: ,

Key Features & Benefits

  • Vacuum Control Function

  • USB Interface & Software – Optional

  • 7‘’ Touch Screen Display, Simple operation

  • Defrost Heating Coil

  • Power-off auto-recovery function: Allows customers to set the power-off restart time

  • Display – condenser temperature, sample temperature and vacuum, display graph

  • Vacuum and temperature correction to ensure long-term accuracy in use

  • Alarm and prompt functions to prevent misoperation

  • Vacuum System – High-precision vacuum gauge

  • Set vacuum pump start and stop required condenser temperature, Oil mist filter

    ⚙️ TECHNICAL PARAMETERS:

    -60°C Series

    Parameter BR-ER3-60A BR-ER3-60B BR-ER3-60C BR-ER3-60D
    Type Standard Stopper Manifold Manifold & Stopper
    Condenser Temp -60°C -60°C -60°C -60°C
    Drying Area 0.12 m² 0.094 m² 0.12 m² 0.094 m²
    Tray Size 200mm x 4 200mm x 3 200mm x 4 200mm x 3
    Vacuum Pressure <5Pa <10Pa <5Pa <10Pa
    Refrigeration Single Cascade Single Cascade Single Cascade Single Cascade
    Ice Capacity 3L / 24h 3L / 24h 3L / 24h 3L / 24h
