Key Features & Benefits

• Dual Wavelength Flexibility: Features both 254 nm and 365 nm UV light tubes (8W each) for flexible visualization options.

• Corrosion-Resistant Casing: Built with a plastic injection-molded housing that provides electrical safety, corrosion resistance, and lightweight durability.

• Built-in Reflector: Integrated internal reflector maximizes UV light focus and intensity across the filter area.

• High Light Transmittance: Delivers UV light transmittance ($\ge 40\%$) across the 230 nm–400 nm spectrum.

• Compact & Portable: Weighing only 0.5 kg, it is ideal for rapid benchtop sample checking and gel inspection.

  ⚙️ Technical Parameters

  Parameter	Specification

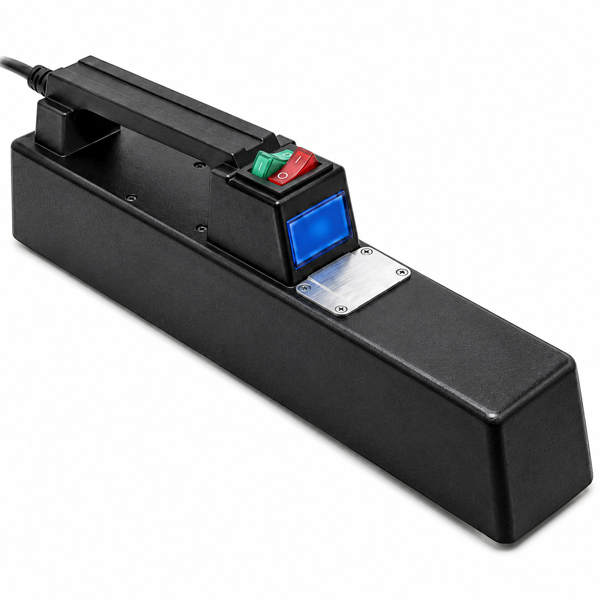

  Model	BI-9403E
  Wavelength	Dual Wavelength: 254 nm and 365 nm
  UV Lamp Power	8W (254 nm) + 8W (365 nm)
  Filter Size	177 x 48 mm
  Light Transmittance	$\ge 40\%$ (for wavelengths 230 nm – 400 nm)
  Power Supply & Frequency	AC 220V $\pm 22\text{V}$, 50 Hz $\pm 1\text{Hz}$
  Dimensions (L x W x H)	340 x 54 x 90 mm
  Net Weight	0.5 kg
  Plug & Connection Type	Indian standard plug
