Key Features & Benefits

• High-Speed Performance: Reaches up to 16,500 RPM with a maximum relative centrifugal force of 31,554 × g for rapid sample separation.

• Precise Temperature Control: Wide temperature range from -20°C to +40°C with ±1°C accuracy maintains sample integrity during processing.

• Autoclavable & Chemical Resistant: Durable metal housing, lid, and stainless steel centrifuge chamber resist disinfectants, detergents, and high-temperature autoclaving.

• User-Friendly Interface: Equipped with a 5-inch color LCD touch screen for clear viewing and easy setting of speed (RPM/RCF), time, temperature, ACC/DEC rates, and programs.

• Advanced Safety & Automation: Features automatic rotor identification, motorized lid lock with drop protection, double-layer sealing ring, and speed calibration observation window.

• Frequency Conversion AC Drive: Microprocessor control with frequency conversion AC motor ensures quiet (≤58 dBA) and smooth operation.

  ⚙️ Technical Specifications

  Parameter	Specification (Model: BR16-M)

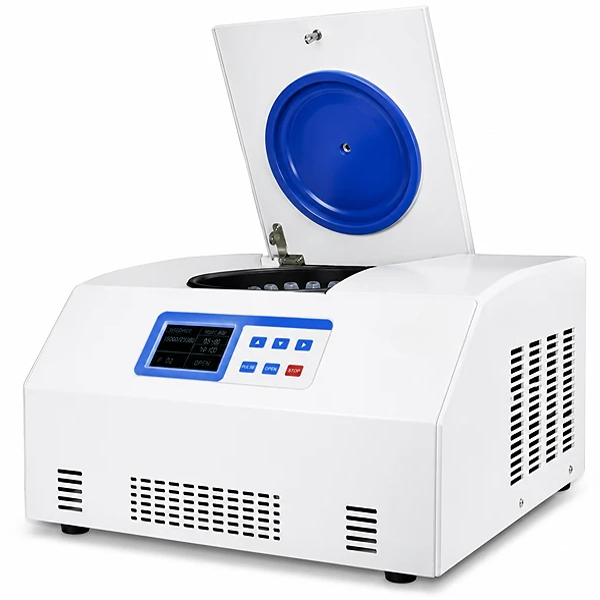

  Model	BR16-M
  Maximum Speed	16,500 r/min
  Maximum Capacity	4 x 100 ml
  Maximum Centrifugal Force	31,554 xg
  Display	LCD / 5-inch color screen
  Timing Range	1 – 99 minutes 59 s adjustable
  Temperature Control Range	-20°C to +40°C
  Temperature Control Accuracy	±1°C
  Dimensions (W x D x H)	600 x 570 x 380 mm
  Power Source / Supply	AC 220V, 50Hz, 10A (110V optional)
  Total Power / Requirement	1KW (1000W)
  Machine Noise	<= 58 dB(A)
  Ambient Temperature	10°C to 30°C
  Relative Humidity	<= 80%
  Net Weight	76 kg
  Program Memory	30
  Safety Features	Automatic rotor identification, Safety lid lock, Lid drop protection
