BR-SERIES

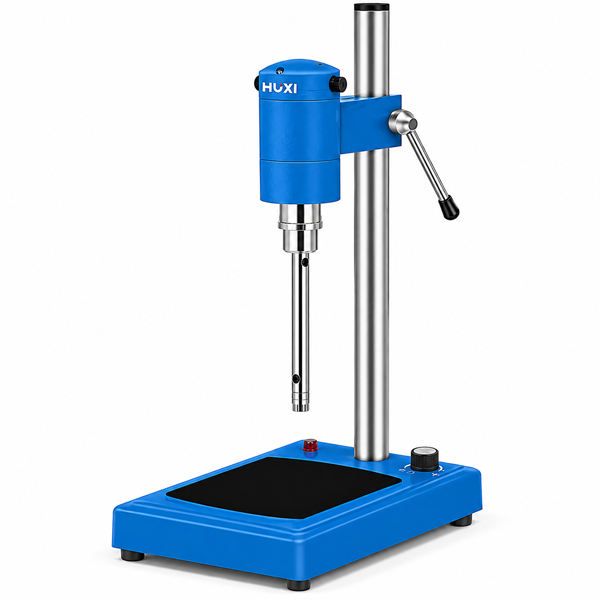

High Speed Homogenizer BR Series

The BR Biochem High Speed Dispersing Homogenizer is driven by a compact series-excited micro high-speed motor. Designed for crushing, dispersing, and homogenizing experimental materials in liquid media, it features a high-density die-cast aluminum alloy driving body, high-quality stainless steel working heads, and a speed-regulating stand for stable, easy operation.

Categories: ,

Key Features & Benefits

  • High-power, compact driving motor with safe and reliable design

  • Material-contacting parts crafted from high-quality corrosion-resistant stainless steel

  • Simple coupling connection for easy assembly and disassembly of working heads

  • Stepless speed governor with regulating frame for smooth and convenient speed control

  • High driving speed and strong output power suitable for various sample viscosities

    ⚙️ TECHNICAL PARAMETERS:

    Main Instrument Specifications

    Parameter BR-200 BR-200-HS BR-300-HS
    Speed Range (rpm) 300~23000 300~23000 300~18000
    Capacity (ml) 30~1500 30~1500 100~13000
    Input / Output Power (W) 280 / 200 280 / 200 510 / 300
    Working Head Config. Φ12, Φ18 Φ12, Φ18 Φ28, Φ36
    Rated Torque (N.cm) 83 68 68
    Power Supply AC 220V, 50Hz AC 220V, 50Hz AC 220V, 50Hz

Download Brochure

PDF Icon Download Technical Brochure (PDF)
