Key Features & Benefits
-
Uniform & Flame-Free Heating: Gentle, indirect water bath heating minimizes ignition risks, making it ideal for processing flammable reagents and biological samples safely.
-
Precise PID Digital Control: Microcomputer PID controller with touch button settings and dual-line digital displays for real-time and target temperature monitoring.
-
Durable Construction: Built with high-quality hairline stainless steel internal chambers and seamless stainless steel heating tubes encased in electrostatic-sprayed cold-rolled steel.
-
Smart Operation Features: Includes timing wait function (0–9999 min), temperature deviation correction, menu key lock, power-off compensation, and power-failure memory.
-
Enhanced Safety Safeguards: Integrated over-temperature alarms protect samples and equipment from thermal runaways.
⚙️ Technical Parameters
Model Temp. Range Volume Power Current Sink Size (mm) Exterior Size (mm) Covers Weight (NW/GW) BI-WH-21.420AII RT+5 to 65°C 11 L 0.5 kW 2.3A 420×180×140 570×230×270 No 8.0 / 9.5 kg BI-WB-21.420AII RT+5 to 100°C 11 L 1.0 kW 4.5A 420×180×140 570×230×270 Yes 8.5 / 10.0 kg BI-WB-21.600AII (65°C) RT+5 to 65°C 36 L 0.75 kW 6.8A 600×300×200 750×350×360 No 17.0 / 19.0 kg BI-WB-21.600AII (100°C) RT+5 to 100°C 36 L 2.0 kW 9.1A 600×300×200 750×350×360 Yes 18.0 / 20.0 kg
-

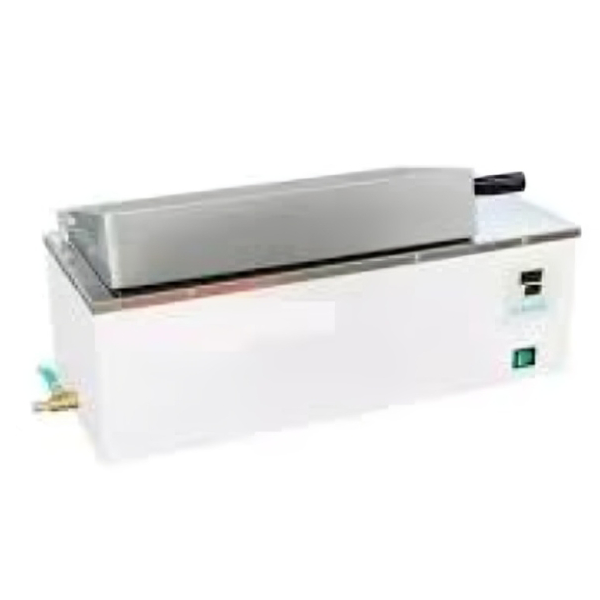

Laboratory Water Bath
he BR Biochem BI-WB / BI-WH Water Bath Series features heavy-duty stainless steel inner chambers, PID digital microcomputer temperature control, and a cold-rolled electrostatic-sprayed outer casing, providing gentle, uniform heating and precise temperature stability for flammable chemical handling, sample incubation, and biological assays.
Download Technical Brochure (PDF)
