FILLING-TSN

Liquid Nitrogen Filling Tank

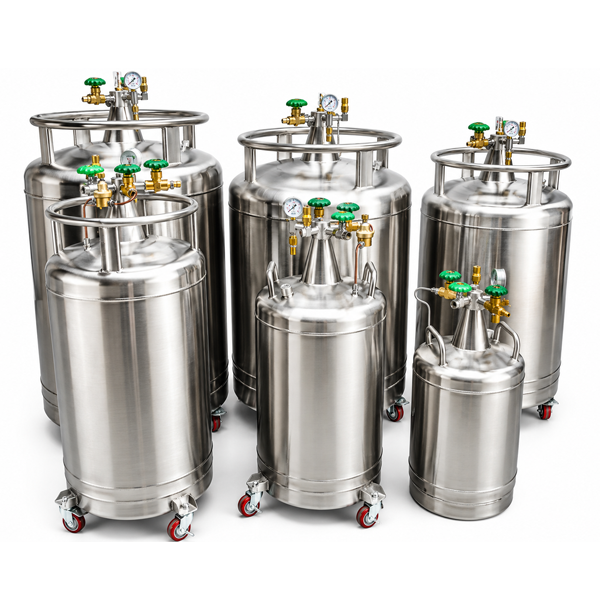

The BR Biochem Liquid Nitrogen Filling Tank is designed for efficient liquid nitrogen storage and automatic liquid discharge using vaporized nitrogen pressure, featuring a stainless steel structure and four bottom rollers for easy mobility in laboratory and chemical settings.

Category:

Key Features & Benefits

  • Automatic Liquid Supply: Utilizes controlled internal pressure buildup to automatically discharge liquid nitrogen into other containers.

  • Durable Stainless Steel Body: Designed for varied environments while reducing liquid nitrogen evaporation loss rates.

  • Essential Valve Assembly: Outfitted with a pressure-building valve, liquid valve, release valve, and precise pressure gauge for safe operation.

  • Easy Mobility: Equipped with four sturdy bottom rollers for convenient transport across facility floors.

  • Optional Automation Upgrades: Supports optional digital level display, remote transmission, pressure regulators, solenoid valves, and automated filling systems.

    ⚙️ Technical Parameters

    Parameter Specification
    Available Models BR-30, BR-50, BR-100, BR-200, BR-300, BR-500
    Capacity Options 31L to 550L (Usable capacity 50L to 500L)
    Transfusion Volume ≥5 L/min (BR-30 to BR-100) / ≥15 L/min (BR-200 to BR-500)
    Daily Evaporation Rate 0.8% to 3.0% per day
    Standard Working Pressure 0.05 MPa (Max Working Pressure: 0.09 MPa)
    Construction & Mobility Stainless steel with 4 bottom rollers
