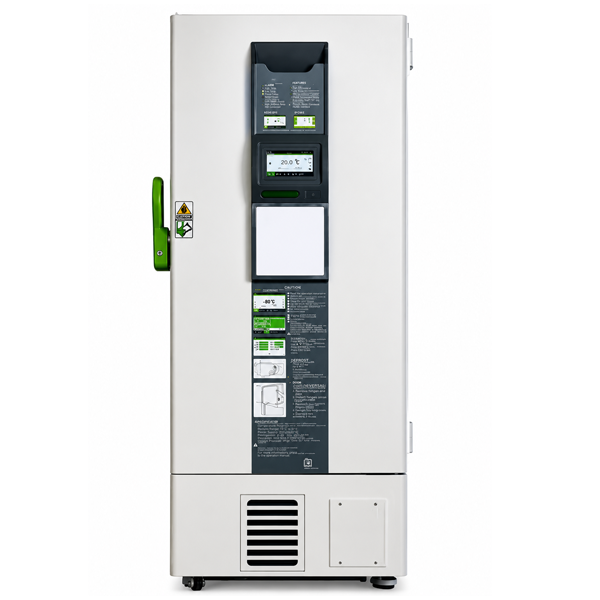

Ultra-Low Temperature Deep Freezer (-86C)

The BR Biochem -86°C Ultra Low Temperature (ULT) Deep Freezer is engineered for the safe, long-term preservation of critical biological and pharmaceutical samples. Designed for research laboratories, biotechnology facilities, hospitals, and pharmaceutical companies, it preserves DNA, RNA, vaccines, blood samples, tissues, and bacterial cultures. Featuring a dual cooling system, internal V.I.P insulation panels, and a 7-inch color touch screen display, it prevents sample degradation and maintains thermal stability.

Categories: ,

Key Features & Benefits

  • High-Performance Cooling System: Equipped with reliable dual-cooling SECOP compressors and CFC-free mixed refrigerants for ultra-low temperature maintenance (-40°C to -86°C).

  • Superior Insulation & Thermal Retention: High-density CFC-free PU foam combined with internal Vacuum Insulation Panels (V.I.P) minimizes cold loss and extends warm-up time during power failures.

  • Smart Touchscreen Interface: Eye-level 7-inch color touch screen provides real-time temperature graphing, system status updates, and event monitoring.

  • Comprehensive Alarm & Security System: Includes high/low temperature, power failure, abnormal voltage, sensor error, low battery, door ajar, and filter screen alarms, alongside standard door lock and padlock support.

  • Ergonomic & User-Friendly Design: Features an automatic vacuum release port for quick door reopening, one-handed door handle operation, internal USB data logging, and heavy-duty universal castors.

    ⚙️ Technical Specifications

    Parameter BR-86V338 BR-86V408 BR-86V588 BR-86V728 BR-86V838
    Capacity (L / cu.ft) 338 L / 11.93 408 L / 14.40 588 L / 20.76 728 L / 25.70 838 L / 29.59
    Temperature Range -40°C to -86°C -40°C to -86°C -40°C to -86°C -40°C to -86°C -40°C to -86°C
    Ambient Temperature 10°C ~ 32°C 10°C ~ 32°C 10°C ~ 32°C 10°C ~ 32°C 10°C ~ 32°C
    Compressor Brand / Qty SECOP / 2 SECOP / 2 SECOP / 2 SECOP / 2 SECOP / 2
    Cooling / Defrost Direct Cooling / Manual Direct Cooling / Manual Direct Cooling / Manual Direct Cooling / Manual Direct Cooling / Manual
    Noise Level 50 dB 53 dB 53 dB 55 dB 55 dB
    Pull Down Time (min) 210 min 245 min 178 min 247 min 268 min
    Warm Up Time (min) 180 min 234 min 273 min 292 min 304 min
    Power Supply 220V / 50Hz 220V / 50Hz 220V / 50Hz 220V / 50Hz 220V / 50Hz
    Power Consumption (kWh/24h) 7.93 13.80 16.23 23.44 19.98
    Power Wattage 620 W 1350 W 1500 W 1400 W 1700 W
    Display 7″ LCD Touch Screen 7″ LCD Touch Screen 7″ LCD Touch Screen 7″ LCD Touch Screen 7″ LCD Touch Screen
    Insulation VIP + PURF VIP + PURF VIP + PURF VIP + PURF VIP + PURF
    Internal Material Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
    Shelves / Inner Doors 3 SS Shelves / 2 Doors 3 SS Shelves / 2 Doors 3 SS Shelves / 2 Doors 3 SS Shelves / 2 Doors 3 SS Shelves / 2 Doors

Download Brochure

PDF Icon Download Technical Brochure (PDF)
