Key Features & Benefits

• Clear LED Digital Display: Allows easy, real-time monitoring of speed and temperature parameters.

• Durable & Safe Construction: Built with a high-temperature resistant, flame-retardant special plastic casing for enhanced lab safety.

• Efficient Heat Transfer: Stainless steel hotplate with ceramic coating ensures quick heating and high chemical resistance.

• Intuitive Control: Features a 3D digital wheel operation for smooth speed and temperature adjustments.

• Smart PT1000 Sensor Recognition: Automatically detects external PT1000 temperature sensors and seamlessly switches to PT1000 operation mode.

• Built-in Safety Protections: Equipped with a hot surface warning light at 50°C and safe temperature limit control (50–320°C).

  ⚙️ Technical Parameters

  Parameter	Specification

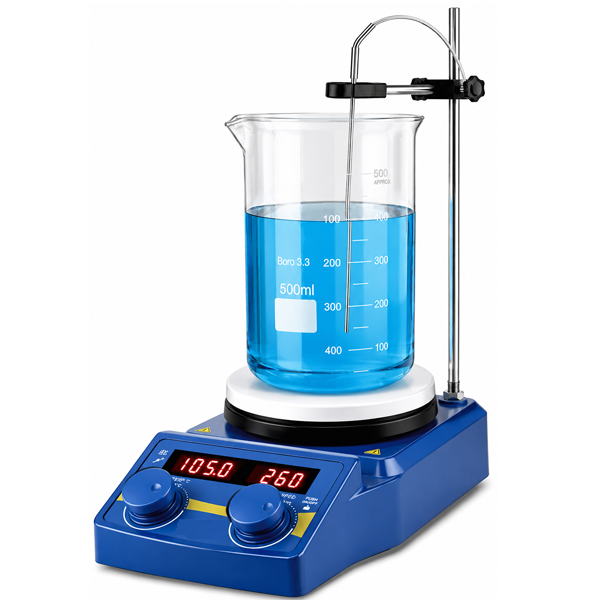

  Model	BIMS-005
  Stirring Position	1
  Plate Dimension	Ø 135 mm
  Plate Material	Stainless Steel with Ceramic Coating
  Motor Type	DC Motor
  Max. Stirring Capacity ($H_2O$)	5 L
  Max. Magnetic Bar Size	55 × 10 mm
  Speed Range	50 – 1500 rpm
  Heating Temperature Range	Room Temp to 280°C
  Heating Power Output	600 W
  Temperature Display Accuracy	±0.1°C
  External Sensor Accuracy (PT1000)	±1°C
  Safety Temperature	50°C – 320°C
  Protection Class (DIN EN 60529)	IP42
  Voltage	200–240 V / 100–120 V
