Key Features & Benefits

• Working condition: Temperature: 5°C~40°C; Relative moisture: 20%~80%

• Blot throughput: 4 mini gels or 2 medium gels; 2 blot cassettes, one of the two cassettes can be used for operation or two cassettes can be used respectively in the right orders. Two independent blot programmes can be used at the same time. The blot area is 15.5 x 11 x 2cm

• Heat Dissipation: Unique world-class heat dissipation channel design releases heat during operation to avoid experiment failure due to excessive temperature.

• Easy operation: Optional ready-to-use pack of blot consumables, no manual preparation of buffer and membrane.

• Blot speed: Blotting 2 mini gels within 3 minutes; blotting 4 mini gels or 2 midi gels within 7 minutes.

• Power: Built-in integrated power supply, voltage 0-30V (1V adjustable), current 0-3A (0.1A adjustable).

• User Interface: 5-inch capacitive touch screen for sensitive and convenient operation.

• Automated Programs: Automatic programme running with preset guides and manual modification options (9 groups of data recorded for automatic/custom storage).

• Electrode Design: Buckle locking mode with plate electrode design ensures uniformity of pressure and field strength.

• Application: Compatible with traditional lab reagents and consumables.

• Independent Cassette Control: Two cassettes can be controlled separately, allowing one or both to be used simultaneously.

  ⚙️ TECHNICAL PARAMETERS:

  Parameter	Specification

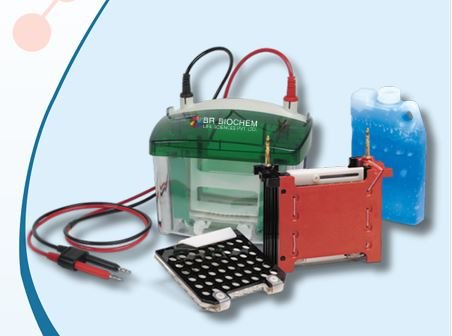

  Model No	BR-SD-001
  Blot Throughput	4 mini gels or 2 medium gels
  Blot Area	15.5 × 11 × 2 cm
  Blot Speed	2 mini gels in 3 mins; 4 mini or 2 midi gels in 7 mins
  Voltage	0-30V (1V adjustable)
  Current	0-3A (0.1A adjustable)
  Display	5-inch capacitive touch screen
  Program Storage	9 groups of data
  Dimension (mm)	290 × 220 × 200 mm
  Weight	3.9 kg
  Configuration Requirement	1 set of Blot System (including built-in power supply and 2 pieces of blot cassettes)
