Key Features & Benefits

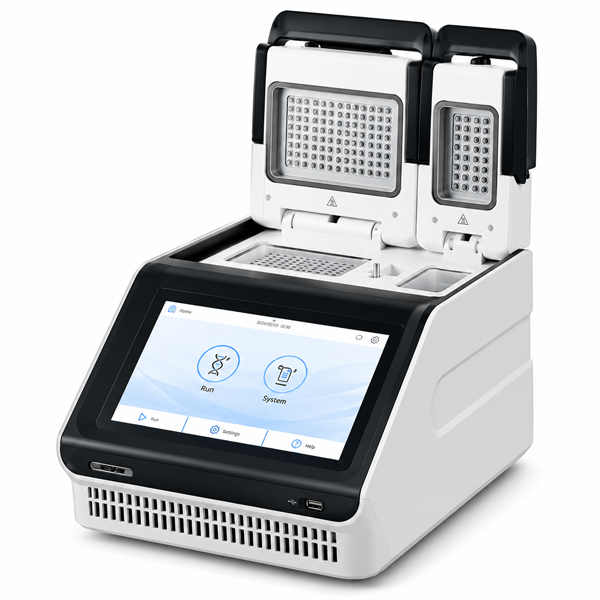

• Three Independent Gradient Blocks: Allows three distinct experiments to run simultaneously (3×32 x 0.2 mL capacity) with individual programming and vertical gradient support.

• Wide Temperature Gradient: Offers a wide gradient range up to 42°C, supporting both standard linear and specialized gradient modes.

• High-Definition Android Interface: Equipped with a 10.1-inch capacitive touchscreen (1920×1200 HD resolution) and Android OS for smooth navigation.

• Rapid Thermal Performance: Maximum heating speed up to 5°C/s (overall ramp rate up to 8°C/s equivalent performance) to significantly reduce run times.

• Advanced Protocol Options: Supports Long PCR (time increment/decrement 1–600s), Touchdown PCR (temp increment/decrement 0.1–10°C), and incubation function with unlimited duration.

• Enhanced Convenience & Security: Three-level user authority management (Admin/User/Guest), independent block screen lock, scheduled experiment booking, and auto-restart following power failure.

• Space-Saving Ventilation: Front and rear air duct design allows instruments to be placed side-by-side without overheating.

  ⚙️ Technical Parameters

  Parameter	Specification
  Model	BR-PCR-F32
  Sample Capacity & Tubes	3 x 32 x 0.2 mL (0.2mL single tubes / 8-tube strips)
  Sample Volume	5 to 100 μL
  Block Temperature Range	0°C to 105°C
  Temp. Accuracy & Uniformity	0.1°C (Accuracy) / ≤±0.2°C (Uniformity) / ≤0.15°C (Precision)
  Heating & Cooling Speed	Max Heating: 5°C/s / Max Cooling: 4.5°C/s
  Gradient Range & Setting	30°C to 105°C (Vertical Gradient range: 1°C to 42°C)
  Heated Lid Temperature	30°C to 115°C
  Program Storage & Cycles	> 10,000 programs, up to 100 cycles, 30 max steps
  Display & Connectivity	10.1-inch HD Touch Screen (1920×1200), Android OS, USB, Internet, Wi-Fi
  Dimensions & Weight	385 x 285 x 253 mm (L x W x H) / 12.0 kg
  Input Power	100–240V, 50/60Hz (Max power: 1000W)
