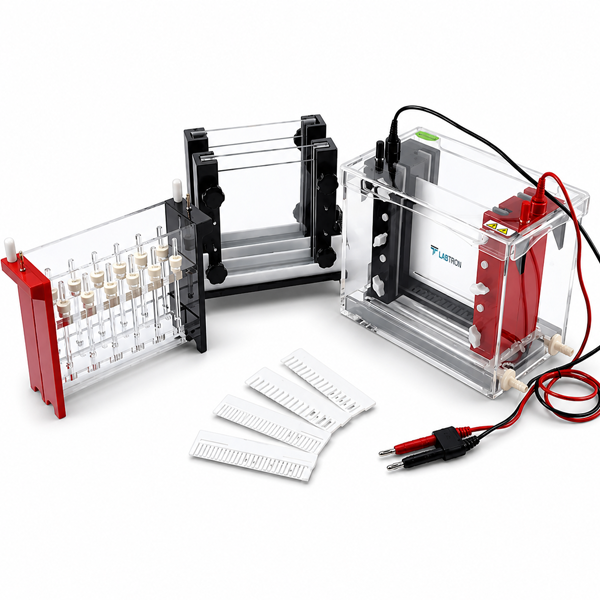

2D Gel Electrophoresis System BR-VE-2D

The BR Biochem Two dimensional electrophoresis is a combination of isoelectric focusing electrophoresis and SDS-PAGE, namely the first isoelectric focusing electrophoresis (according to pI separation), then SDS-PAGE (according to molecular size), after electrophoresis graph coloring obtained is a two-dimensional distribution of protein diagram.

Categories: 2D Gel Electrophoresis System BR-VE-2D, Electrophoresis Series

Description
Download Brochure

Key Features & Benefits

No need for high current electrophoresis power supply.
The 1st D and 2nd D is separated, either is an independent electrophoresis tank.
Can keep a cooling environment with cooling water.
It is more convenient to open the lid with the easy button.

Auto-switch-off when the lid is moved.

⚙️ TECHNICAL PARAMETERS:

Parameter	Specification
Model No	BR-VE-2D
1st D Tube Gel Electrophoresis – Length of Glass Tube	120 mm
1st D Tube Gel Electrophoresis – Gel Diameter	1.0, 2.0 mm
2nd D Vertical Electrophoresis – Gel Size (W x L)	143 x 139 mm
2nd D Vertical Electrophoresis – Gel Thickness	1.0, 2.0 mm
Number of Gels	2 pcs
No. of Samples	17-58
Total Buffer Volume	2500 ml
Dimension (L x W x H)	460 × 230 × 400 mm
Weight	13.2 kg
