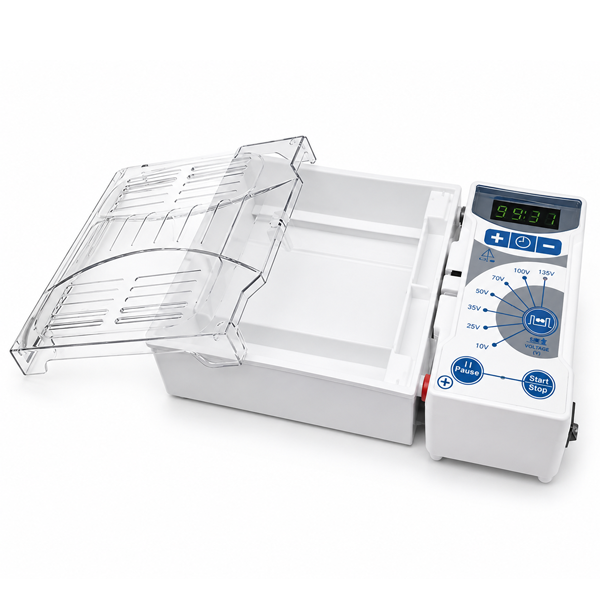

Key Features & Benefits

• Robust Construction: Molded from durable, high-clarity polycarbonate for long life and seamless leak-proof operation.

• Leak-Proof Gel Casting: Simple tape-free gel casting options with dedicated casting gates and UV-transparent gel trays for direct transilluminator viewing.

• Uniform Field Distribution: Pure platinum wire electrodes ensure high electrical conductivity and stable field generation.

• Safety First: Safety lid design prevents power connection unless the lid is securely closed on the buffer tank.

• Flexible Options: Available in multiple tank sizes and comb configurations to accommodate varying sample numbers and run speeds.

  ⚙️ Technical Specifications

  1. General & Model Specifications

  Parameter	BR-H1 (Mini)	BR-H2 (Standard)	BR-H3 (Wide)	BR-H4 (Maxi)	BR-H5 (High-Throughput)
  Gel Dimension (W x L)	78 x 100 mm	120 x 120 mm	150 x 150 mm	200 x 200 mm	250 x 250 mm
  Buffer Volume	~250 ml	~600 ml	~1000 ml	~1800 ml	~2500 ml
  Max. Sample Capacity	32 samples	100 samples	150 samples	200 samples	500 samples
  Combs Thickness	1.0 mm / 1.5 mm	1.0 mm / 1.5 mm	1.0 mm / 1.5 mm	1.0 mm / 1.5 mm	1.0 mm / 1.5 mm
  UV Transparent Tray	Yes	Yes	Yes	Yes	Yes
  Electrode Material	Platinum wire (99.99%)	Platinum wire (99.99%)	Platinum wire (99.99%)	Platinum wire (99.99%)	Platinum wire (99.99%)
