Key Features & Benefits

• Built-in computer, 8″ touch screen, operation system in English, can edit, test, save, print efficiently and conveniently.

• It can test 96 wells in 3 seconds. System self-check and diagnosis function for optical paths and mechanical parts

• Lamp’s automatic switch, energy-efficient design can extend the life of light source and make easy to change lamp

• Shaking function, adjustable shaking speed and time

• Specimen information records: lists and cards, directly input specimen No., Patient Name, etc

• Specimen No., OD value, result, S/CO value and item parameters can be shown in the same screen

• Quick tagging blank, specimen, positive control, quality control, multi-valued comparison

• Inquiry and statistic analysis can be done based on the specimen No. and name, automatically track and analyse changing trends in data. Can save data in MS Excel

  ⚙️ TECHNICAL PARAMETERS:

  Parameter	Specification

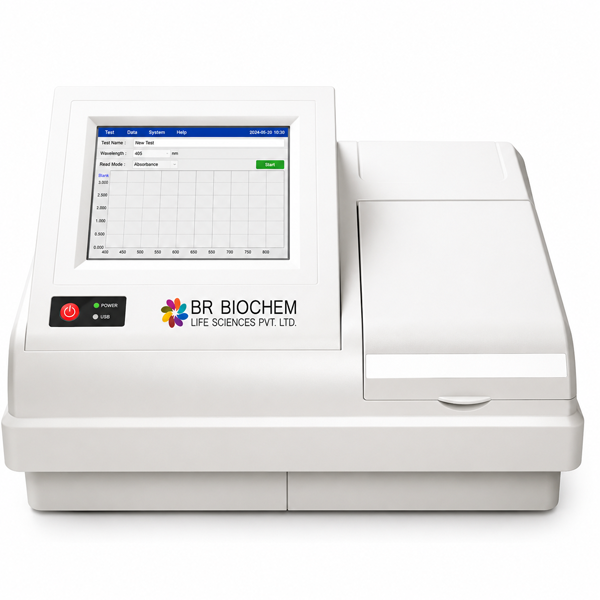

  MODEL	BR-580
  Light Source	6V,10W tungsten halogen lamp, work over 5000 hours
  Wavelength range	400-750nm
  Optical Filters	4 standard filters: 405,450,492,630, max 8 filters
  Measurement Methods	Single, dual two points method, dynamic assay, multiple wavelengths
  Blank Ways	Single, multiple wells blank, rows and columns blank
  Calculation Method	Absorbance, single point calibration, linear regression, quadratic curve, four parameters equation
  Measurement Speed	Single wavelength<3second/96 wells, dual wavelength<9seconds/96well
  Measurement Range	0.0000-4.5000Abs
  Linearity	+-0.5% or <0.025A
  Repeatability Difference	<0.1% or +-0.0025A
  Row and columns difference	<0.01A
  Resolution	0.0001A
  Environment power	12V D(100V-240V wide input voltage)
  Display	External computer, shows whole results and calibration curve
  Save information	Over 300 test programs, results of 50 pieces of 96 well, 100000 test results
  Interface	1 USB two-way communication interface
